BESTON BST-05 0.5-1t/h peel continuous charcoal carbonization furnace machine

FOB Reference Price:Get Latest Price
$58,000.00 - $60,000.00 / Sets | 1 Set/Sets (Min. Order)
Type:
Air Flow
Application:
Making Charcoal
Model Number:
BST-05
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Machinery Repair Shops, Carbon production equipment
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Beston
Voltage:
380V
Certification:
ISO CE
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training
Name:
peel continuous charcoal carbonization furnace machine
Raw material:
Sawdust ,Coconut shell .Wood ,Rice husk and other biomass material
Color:
Customer's Request
Advantage:
Continuous Working Environment Friendly
Capacity:
0.5-1t/h
Fuel:
Firewood
Structure:
Horizontal & Rotary
Service:
24 hours online
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Equipment body: plastic film.
2.Accessories: standard export wooden cases.
3.We can do as your requirement.
Port
Lianyungang
Video Description

BESTON BST-05 0.5-1t/h peel continuous charcoal carbonization furnace machine

Product Description

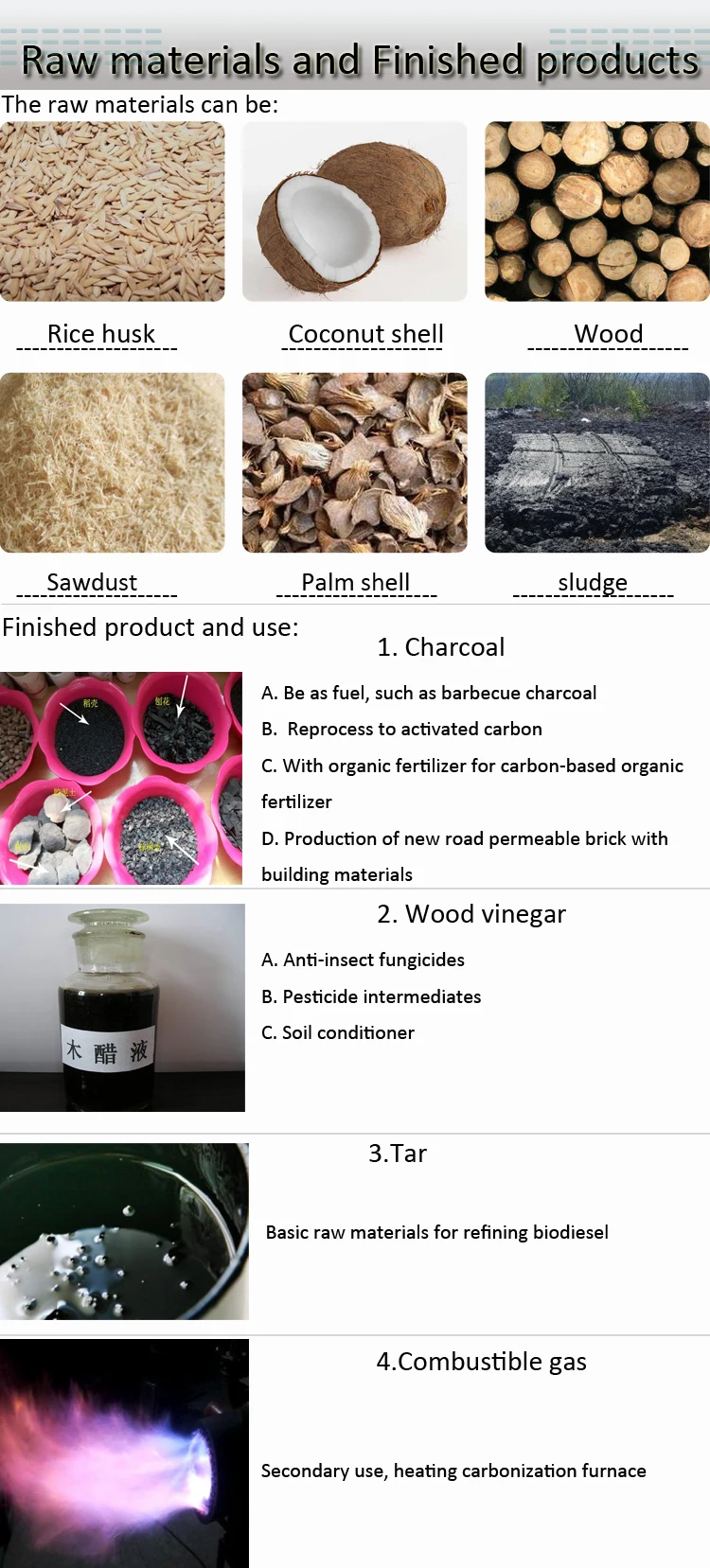

 Beston Biomass carbonization plant is a system that can process the sawdust ,cocount ,wood ,rice husk and other biomass material /waste sludge into some profitable products like charcoal,wood vinegar,tar,combustible gas ,and can make profit for you.

Main Parameter

Biomass Carbonization Plant

Model

BST-05

BST-10

BST-30

BST-50

BST-100

Raw Material

Sawdust,Coconut shell,Wood,Rice husk and Sludge,etc.

Structure

Horizontal,Dual Layers

Reactor diameter

Φ800mm

Φ1000mm

Φ1300mm

Φ1700mm

Φ2000mm

Input Capacity(kg/h)

0.5-1t/h

1-2t/h

3-5t/h

5-8t/h

8-10t/h

Reactor Power(kw/h)

5.5kw

5.5kw

7.5kw

11kw

15kw

Reactor Material

Q345R Boiler steel+310SS





Advantages

1. Reactor: stainless steel 310s, thermostability.
2. Large processing capacity, fully continuious, strong sense of science and technology.
3.De-dusting system, smoke emission meet EU standard.
4. Automatic sealed discharging system, no dust flying.
5. Combustible gas recycled, save fuel.

Main parts



Packaging & Shipping



Packaging:



1.Equipment body: plastic film.
2.Accessories: standard export wooden cases.
3.We can do as your requirement.
Shipping :
35 working days after funds into account.



Company Information

 Beston (Henan) Machinery Co., Ltd was founded in 1998, which is an innovative and high -tech enterprise, incorporating research, manufacture, sales, service, import and export. Specializing in the production of recycling production line, solid waste separation, indluding waste tyer, rubber and plastic pyrolysis plant, Oil distillation plant, Carbon black deep processing plant. Through sophisticated organic polymer pyrolysisi technology and environmental and production equipment. Since the factory was founded, it equips with advanced producution technology, frist -class quality products and personalized service philosophy, after 18 years of unremitting efforts, we have  developed into the industry leader. we are committed to environmnetal protection industries, products certified by CE, ISO, etc.



Certifications



FAQ



Q1.What are the requirements for feed size and moisture?

The normal feed size is below 2 cm and the current maximum feed size is 5 cm (peach nucleus). In general, a crusher is required for more than 2 cm.The normal feed moisture of the carbonizer is less than 15%.



Q2.Material carbonization temperature:

Temperature control by fan.Biomass is generally 380 degrees Celsius - 450 degrees Celsius,The carbonization temperature of the sludge is higher than 500-650 degrees,The carbonization temperature of the garbage is about 600--850 degrees



Q3. About dust removal and exhaust emissions:

All gases are led by the fan. (The fan is frequency-converted, and the air volume can be adjusted by the PLC according to the actual amount of gas generated to achieve the best effect.) After the dust collector is used, the smoke tower is sprayed 5-8 steps and then drained. The specific exhaust gas treatment situation gives different configurations to meet customer requirements based on customer requirements.



Q4.Questions about the rate of charcoal:

Answer: Take the coconut shell shredded by sawdust and rice husk as an example:

For every ton of water containing less than 10%, the finished carbon 280KG----310KG can be obtained. After removing water, it is basically maintained at 3:1.



Q5.Equipment safety measures:

1. When the equipment is working, the equipment is micro-negative pressure (the pressure gauge shows 8mm negligible). The main furnace end is equipped with explosion-proof holes (to prevent excessive pressure inside the equipment)

2. PLC electric cabinet has alarm device, there will be alarm display and alarm for partial failure of electric appliance

3. Explosion-proof water seal at the gas pipeline (to prevent abnormal gas pressure in the equipment)

4. All pipeline gas directions are led by the fan (the fan is frequency conversion), and the pipeline will be displayed on the PLC when it is blocked.
