Large capacity continuous waste plastic pyrolysis plant

FOB Reference Price:Get Latest Price
$390,000.00 - $440,000.00 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BLL-30
Report Suspicious Activity
Overview
Quick Details
Applicable Industries:
Manufacturing Plant
Condition:
New
Type:
Waste rubber /plastic/tiress pyrolisis plant
Place of Origin:
Henan, China
Brand Name:
BESTON
Voltage:
380 V
Power(W):
About 80 KW
Dimension(L*W*H):
30*15*10 M
Weight:
80 Ton
Certification:
CE ISO
Warranty:
1 Year
After-sales Service Provided:
Field installation, commissioning and training, Engineers available to service machinery overseas
Key Selling Points:
Eco-friendly
Name:
Large capacity continuous waste plastic pyrolysis oil plant
Raw material:
Waste plastic,waste tires ,waste rubber ,oil sludge
Color:
Blue
Daily capacity:
30 Ton
Working mothod:
Fully continuous
Operating pressure:
Constant pressure
Reactor rotate speed:
Not rotary type
Reactor size:
L12.5*W2.2*H2.5 M
End product:
Fuel oil ,carbon black ,steel wire
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
1.Equipment body: plastic film.
2.Accessories: standard export wooden cases.
3.We can do as your requirement.
Port
Lianyungang
Video Description

Large capacity continuous waste plastic pyrolysis oil plant



Product Description

Beston waste rubber/waste plastic / waste tires pyrolysis plant is a system that can process the waste plastic and tyre into some profitable products like fuel oil and carbon black, and can make profit for you.

The model of this equipment is BLL-30 and its daily capacity is 30 Ton per day .


Notice: Kindly check the models with different daily capacity we have below and let us know which one do you prefer.

The model BLJ-6,its daily capacity is 6ton,

The model BLJ-10.its daily capacity is 10 Ton,

 The model BLL-16, its daily capacity is 15-20 Ton,

Click them to know more detials about this equipment .

Main Parameter



Data

BLJ-6

BLJ-10

BLL-16

BLL-30

Daily capacity

6 MT

10 MT

15-20 MT

30 MT

Working method

Batch

Semi-Continuous

Fully continuous

Operating pressure

Constant pressure

Reactor rotate speed

0.4 turn/minute

Not rotary type

Total power

24 kw /h

30 kw /h

54 kw /h

80 kw /h

Reactor size

D2.2*L6m

D2.6*L6.6 m

D2.8*L7.1

L12.5*W2.2*H2.5m

Space for machine

20*10*10 m

20*10*10 m

25*15*10 m

20*15*10 m

Main parts



Advantages

In Quality :

1) All equipment passed CE, ISO certification.
2) Using automatic submerged arc welding technology, ultrasonic non-destructive testing to ensure equipment quality.

In Safety:

 1) Small furnace door design is more stabler and safer. It is equipped with safety valve,.automatic alarm system and explosion-proof valve to ensure 100% safety.

2) High-temperature sealed automatic slagging system, completely closed, no dust flying phenomenon.

3) Safety devices: pressure gauges, thermometers, emergency vent valves, vacuum pumps, safety valves, alarm systems, explosion protection devices and water seals.

In Environment:

1) The flue tube condenser cools the exhaust gas discharged from the burner, protects the exhaust fan, and improves the dust removal effect. The final flue gas discharge temperature is about 75°C.
2) Adopt four-layer dust removal system, after washing, ceramic ring adsorption, activated carbon and water spraying, purify the exhaust gas to meet the European pollution-control standards.

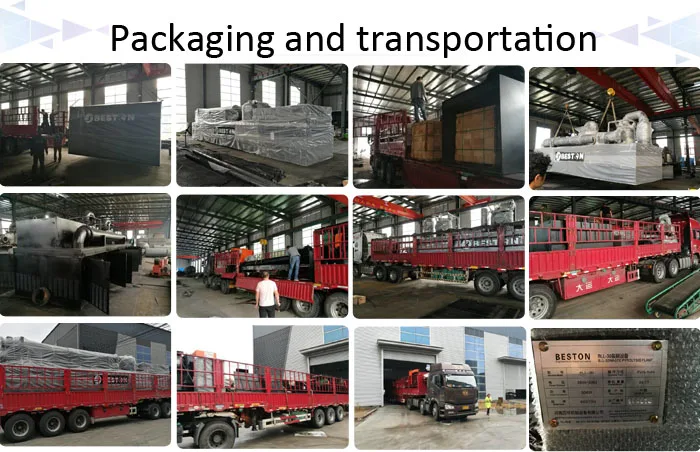

Packaging & Shipping

Packaging:



1.Equipment body: plastic film.
2.Accessories: standard export wooden cases.
3.We can do as your requirement.
Shipping :
25 working days after funds into account.
Company & Factory

Beston (Henan) Machinery Co., Ltd was founded in 1998, which is an innovative and high -tech enterprise, incorporating research, manufacture, sales, service, import and export. Specializing in the production of recycling production line, solid waste separation, indluding waste tyer, rubber and plastic pyrolysis plant, Oil distillation plant, Carbon black deep processing plant. Through sophisticated organic polymer pyrolysisi technology and environmental and production equipment. Since the factory was founded, it equips with advanced producution technology, frist -class quality products and personalized service philosophy, after 18 years of unremitting efforts, we have  developed into the industry leader. we are committed to environmnetal protection industries, products certified by CE, ISO, etc.

Certifications





FAQ

Q:Do you have factory ?
A:Yes .we have our own factory .Our engineer can design the waste rubber pyrolysis equipment for you for free !



Q:How often does the activated carbon in the dedusting equipment change?

A:3 months.



Q:Running time?

A:The feeding time is about two hours, the processing time is 8-10 hours, the cooling time is 3 hours, and the slag discharge time is 2-3 hours. The slag is discharged below 50 degrees in about 16-17 hours.



Q:Is there waste water produced during the production process?

A:no.



Q:Several people operate cracking equipment?

A:6-7 workers divided into two groups take turns.



Q:How to feed the waste plastic recyclng pyrolysis plant ?

A:Screw feed or manual.



Q:Why can't PET be processed?

A:It won't get oil from the reaction and it will do harm to the reactor.



Q:Heating method of  this machine ?
A: Heating directly.



24-hour online ,if you have other problems about this product .

please contact us freely .
